0.96 inch OLED Display Module, SSD1306, I2C, 128×64 (3-Pack)

$9.99

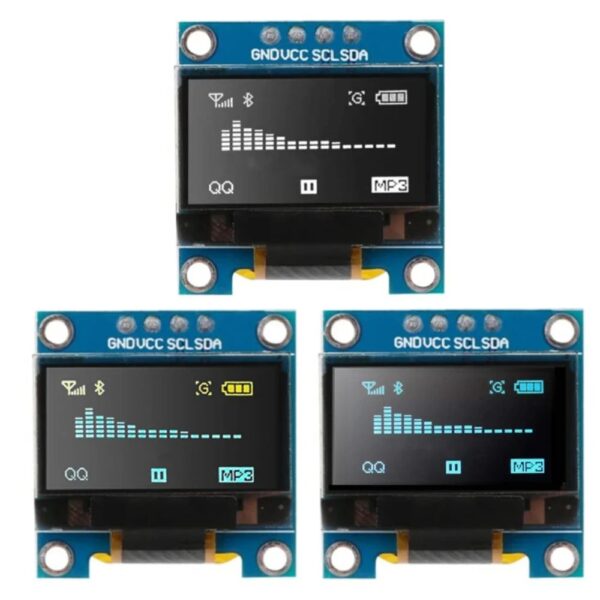

0.96 in monochrome OLED, 128 × 64 pixels, SSD1306 controller over a 4-pin I2C header (GND, VCC, SCL, SDA). Runs from 3.3 V or 5 V logic. Pack of three; yellow top band with blue main area.

Request a Quote
✓Returns: 30-day RMA for unused, sealed catalog hardware. Address is issued after approval. See Returns.
✓Warranty: 90-day limited warranty on paid Kymopsis-branded catalog hardware for manufacturing defects. Custom work follows the quote.
✓Ordering & shipping: Duties and import taxes included: we ship duties paid, so there is nothing extra to pay at delivery. Secure checkout through Stripe. Orders ship worldwide at USD 15, free from a USD 79 merchandise subtotal. Dispatch time is stated on each listing; the carrier is shown at checkout. Policies.
SKU: KYM-DT-OLED096-3 Category:

A small self-lit display for status readouts, menus, and sensor values. No backlight is needed, so it stays readable in the dark and draws little current.

Specifications

  • Display: 0.96 in OLED, 128 × 64 pixels, yellow top rows and blue main area
  • Controller: SSD1306

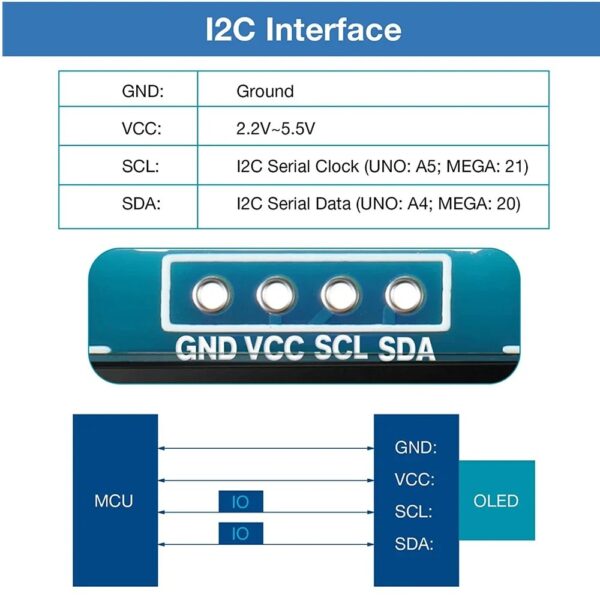

  • Interface: I2C, 4-pin header: GND, VCC, SCL, SDA; default address 0x3C
  • Supply: 3.3–5 V

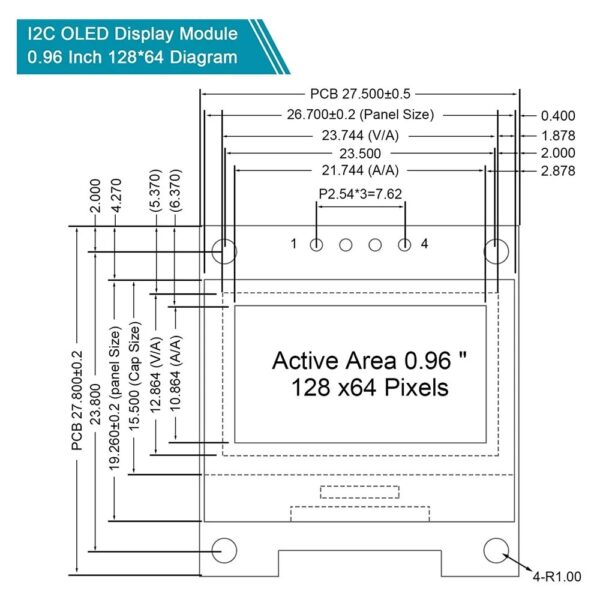

  • Module size: about 27 × 27 mm
  • Pack: 3 modules

Typical uses

  • Status screens for ESP32 and microcontroller projects
  • Sensor readouts (temperature, distance, radar presence)
  • Menus for small instruments and DIY tools

Supported by common libraries such as Adafruit SSD1306 and U8g2.

Ordering notes

  • Ships within 5 business days after payment.
  • Shipping: USD 15 per order worldwide, free from a USD 79 merchandise subtotal. See Shipping.
  • Need a larger quantity, a different version, or a custom carrier board? Request a quote.
