Solderless Breadboard, 830 or 400 Points (3-Pack)

From $6.99

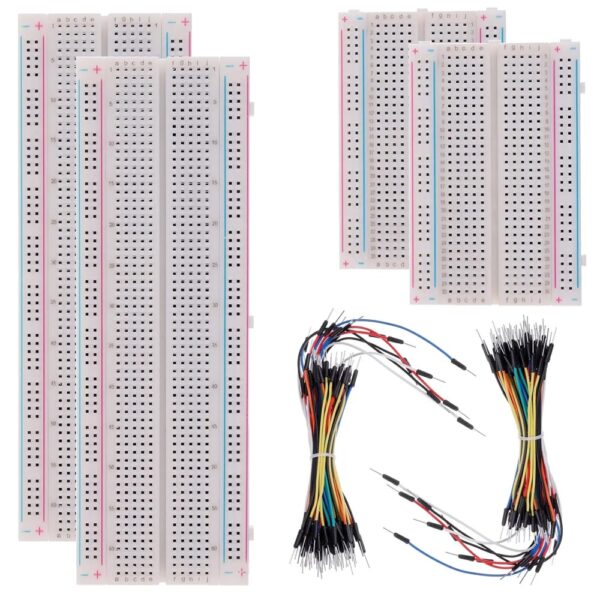

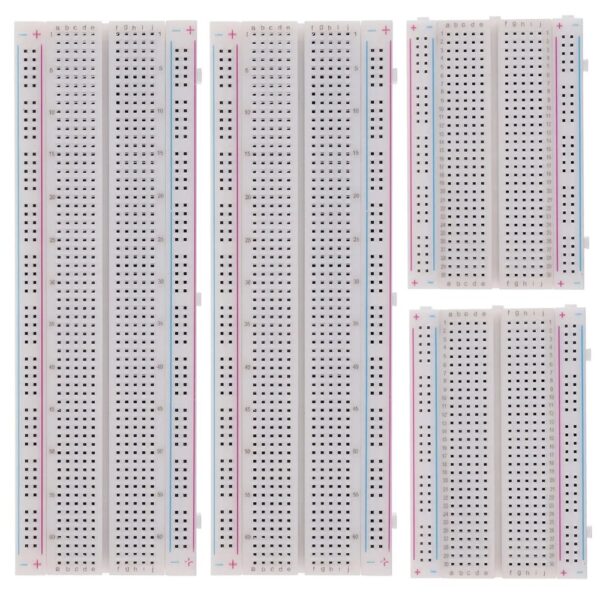

Solderless prototyping breadboards with 2.54 mm (0.1 in) pitch, sold in packs of three: full-size 830-point (MB-102) or half-size 400-point. Self-adhesive back; boards snap together.

Request a Quote
✓Returns: 30-day RMA for unused, sealed catalog hardware. Address is issued after approval. See Returns.
✓Warranty: 90-day limited warranty on paid Kymopsis-branded catalog hardware for manufacturing defects. Custom work follows the quote.
✓Ordering & shipping: Duties and import taxes included: we ship duties paid, so there is nothing extra to pay at delivery. Secure checkout through Stripe. Orders ship worldwide at USD 15, free from a USD 79 merchandise subtotal. Dispatch time is stated on each listing; the carrier is shown at checkout. Policies.
SKU: KYM-DT-BB Category:

Standard solderless breadboards for building and testing circuits without soldering. Each board has two power rails on each side and a centre channel sized for DIP packages.

Specifications

  • Pitch: 2.54 mm (0.1 in)
  • Tie points: 830 (MB-102, about 165 × 55 mm) or 400 (about 83 × 55 mm)
  • Wire size: 20–29 AWG solid wire and standard Dupont jumper pins
  • Back: Self-adhesive foam; side dovetails join boards together
  • Pack: 3 boards of the selected size

Typical uses

  • Prototyping ESP32, Arduino-compatible and Raspberry Pi circuits
  • Sensor, display, and relay module tests before a PCB
  • Classroom and workshop kits

Ordering notes

  • Ships within 5 business days after payment.
  • Shipping: USD 15 per order worldwide, free from a USD 79 merchandise subtotal. See Shipping.
  • Need a larger quantity, a different version, or a custom carrier board? Request a quote.
Pack

830-point × 3, 400-point × 3
