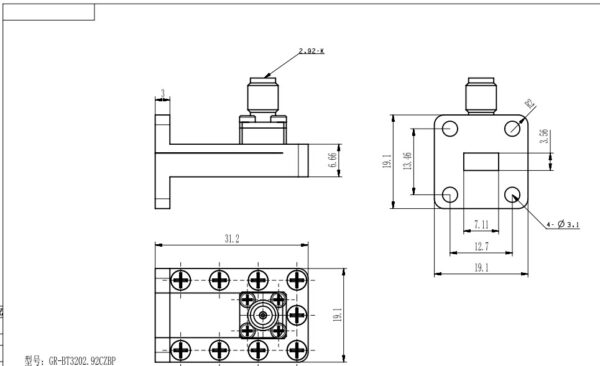

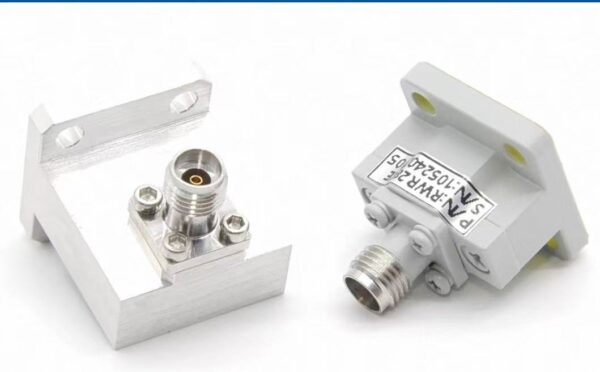

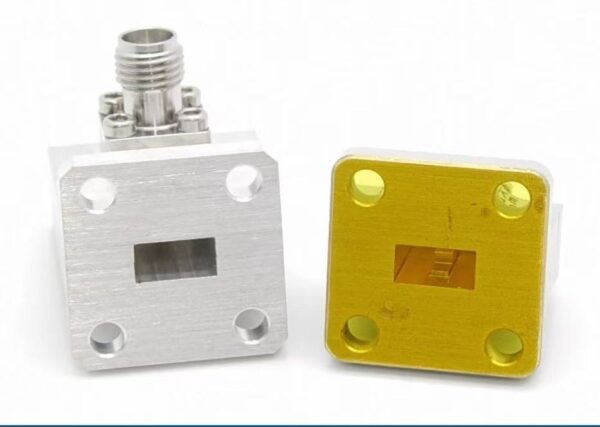

Connects WR-28 waveguide components (horns, couplers, loads) to 2.92 mm coaxial cables and instruments across the Ka band. Right-angle launch with a standard WR-28 square flange.
Supplier datasheet figures
- Waveguide: WR-28 (BJ320)
- Frequency: 26.3–40 GHz
- Coax port: 2.92 mm female, stainless steel body, gold-plated pin, PEI insulator
- Mating cycles: > 500
- Supplier model: BT3202.92CZBP
Typical uses
- Feeding WR-28 horns from a 40 GHz VNA or signal generator
- 5G FR2 and Ka-band component test
- Waveguide calibration and fixture set-ups
Ordering notes
- Ships within 15 business days after payment (made to order or held at the factory). We email you if that changes.
- Ships from China. Duties and import taxes are included: we ship duties paid (DDP), so there is nothing extra to pay at delivery.
- Figures above are supplier datasheet values, not a Kymopsis lab report. Ask us for the supplier test data where one exists.
- Need a different band, connector, gender, or length, or more than 10 pieces? Request a quote.
