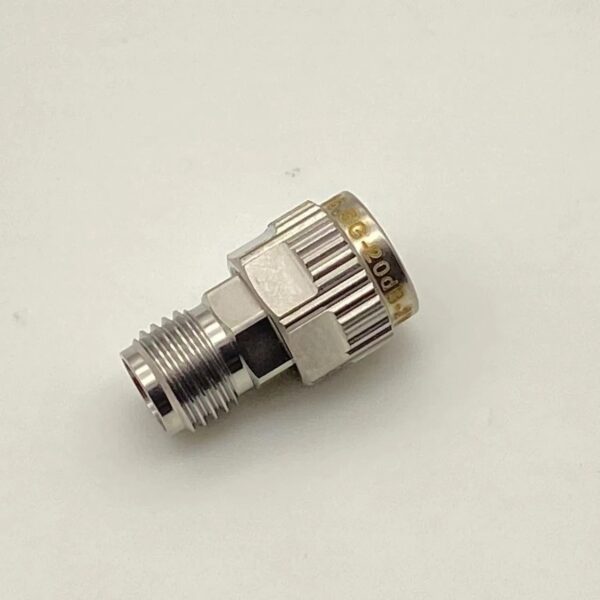

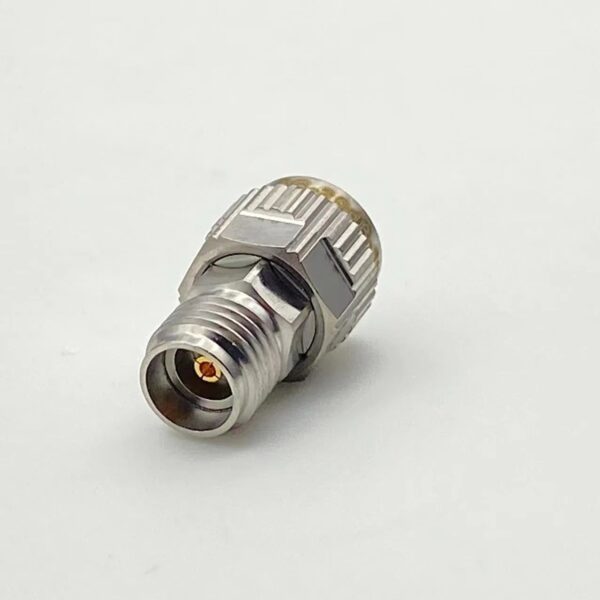

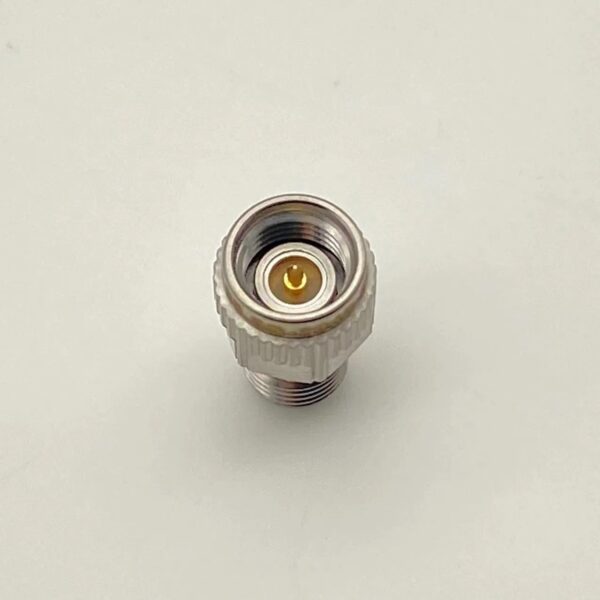

3.5 mm Fixed Attenuator, DC–26.5 GHz, 2 W, Male to Female

$98.00

Precision 3.5 mm male-to-female fixed attenuator, DC–26.5 GHz, 2 W average, VSWR 1.2:1. Mates with SMA and 2.92 mm. Choose 3, 6, 10, 20, or 30 dB. All attenuation values are the same price.

Request a Quote
✓Returns: 30-day RMA for unused, sealed catalog hardware. Address is issued after approval. See Returns.
✓Warranty: 90-day limited warranty on paid Kymopsis-branded catalog hardware for manufacturing defects. Custom work follows the quote.
✓Ordering & shipping: Duties and import taxes included: we ship duties paid, so there is nothing extra to pay at delivery. Secure checkout through Stripe. Orders ship worldwide at USD 15, free from a USD 79 merchandise subtotal. Dispatch time is stated on each listing; the carrier is shown at checkout. Policies.
SKU: KYM-ATT-35-2W Category:

A stainless steel fixed attenuator for 26.5 GHz work. The 3.5 mm interface is mechanically compatible with SMA and 2.92 mm, so it fits most microwave benches.

Supplier datasheet figures

  • Frequency: DC–26.5 GHz
  • Attenuation values: 3, 6, 10, 20, 30 dB (other values 1–40 dB by quote)
  • Accuracy: ±0.7 dB (10 dB part)
  • VSWR: 1.2:1
  • Average power: 2 W at +25 °C; peak 250 W
  • Impedance: 50 Ω
  • Operating temperature: −65 °C to +125 °C
  • Connectors: 3.5 mm male to 3.5 mm female (MIL-STD-348)
  • Hex: 5/16 in; torque 8 in-lb (0.9 N·m)

Ordering notes

  • Ships within 15 business days after payment (made to order or held at the factory). We email you if that changes.
  • Ships from China. Duties and import taxes are included: we ship duties paid (DDP), so there is nothing extra to pay at delivery.
  • Figures above are supplier datasheet values, not a Kymopsis lab report. Ask us for the supplier test data where one exists.
  • Need a different band, connector, gender, or length, or more than 10 pieces? Request a quote.
Attenuation

3 dB, 6 dB, 10 dB, 20 dB, 30 dB
