CH341A USB Programmer Kit with SOIC8 Clip and 1.8 V Adapter

$11.99

USB programmer for 24-series I2C EEPROMs and 25-series SPI flash, with an SOIC8 test clip and cable, a 1.8 V level adapter, and an SOP8-to-DIP8 socket board. Reads, writes, and backs up flash chips in circuit or in the socket.

Request a Quote
✓Returns: 30-day RMA for unused, sealed catalog hardware. Address is issued after approval. See Returns.
✓Warranty: 90-day limited warranty on paid Kymopsis-branded catalog hardware for manufacturing defects. Custom work follows the quote.
✓Ordering & shipping: Duties and import taxes included: we ship duties paid, so there is nothing extra to pay at delivery. Secure checkout through Stripe. Orders ship worldwide at USD 15, free from a USD 79 merchandise subtotal. Dispatch time is stated on each listing; the carrier is shown at checkout. Policies.
SKU: KYM-DT-CH341A Category:

A low-cost bench programmer for reading and writing SPI NOR flash and I2C EEPROM chips. Use the clip to dump or restore firmware on a board without desoldering the chip.

Specifications

  • Controller: WCH CH341A, USB 2.0
  • Supported chips: 24-series I2C EEPROM and 25-series SPI NOR flash; 93-series with suitable software

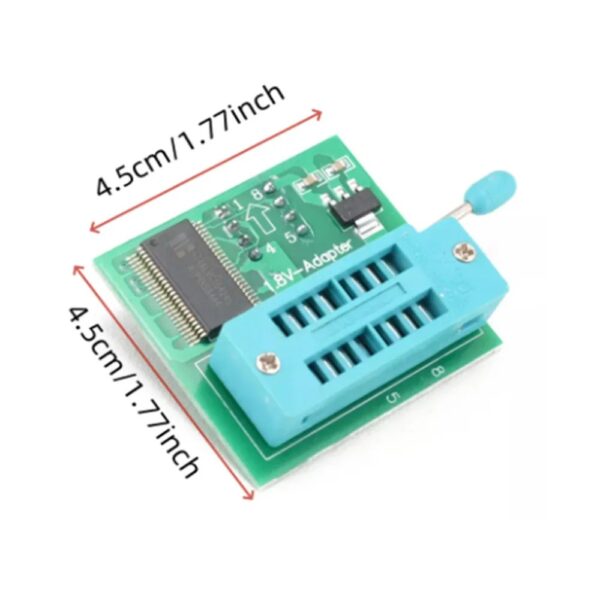

  • Voltage: 3.3 V and 5 V; 1.8 V chips through the included adapter

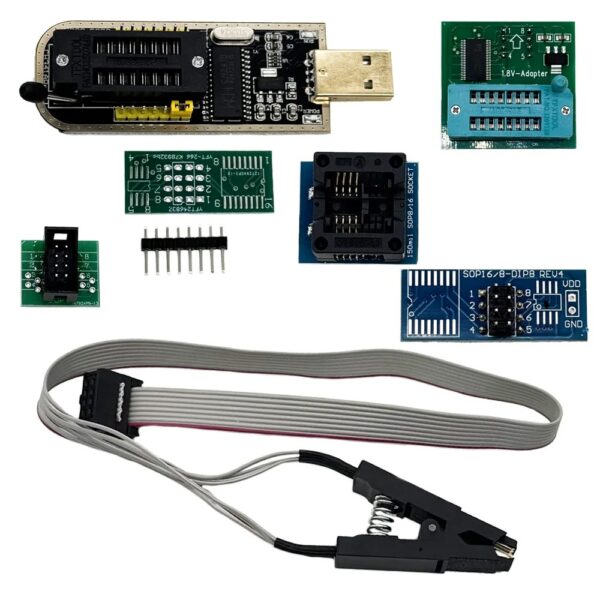

  • Included: CH341A programmer, SOIC8/SOP8 test clip with cable, 1.8 V adapter, SOP8-to-DIP8 adapter board, header pins
  • Software: Open-source flashrom and other CH341A-compatible tools (Windows, Linux, macOS)

Typical uses

  • Backing up and restoring firmware on routers and ESP-class boards
  • Recovering a bricked board from its SPI flash
  • Programming configuration EEPROMs

Check the flash chip voltage first: connect 1.8 V chips only through the 1.8 V adapter. Power the target board off when using the clip in circuit.

Ordering notes

  • Ships within 5 business days after payment.
  • Shipping: USD 15 per order worldwide, free from a USD 79 merchandise subtotal. See Shipping.
  • Need a larger quantity, a different version, or a custom carrier board? Request a quote.
