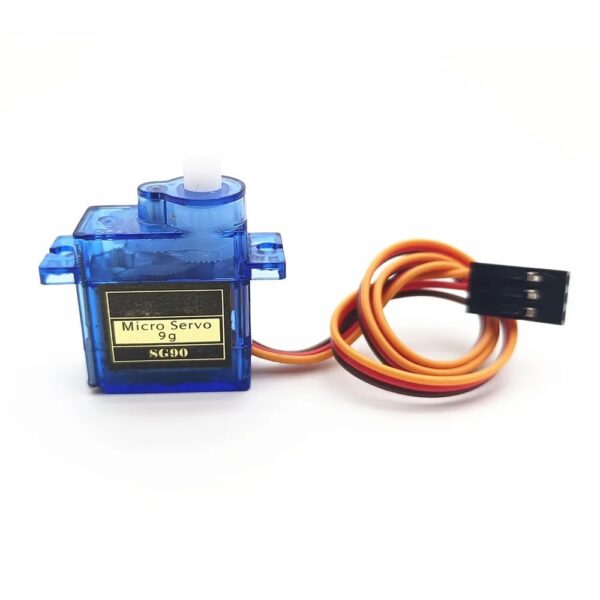

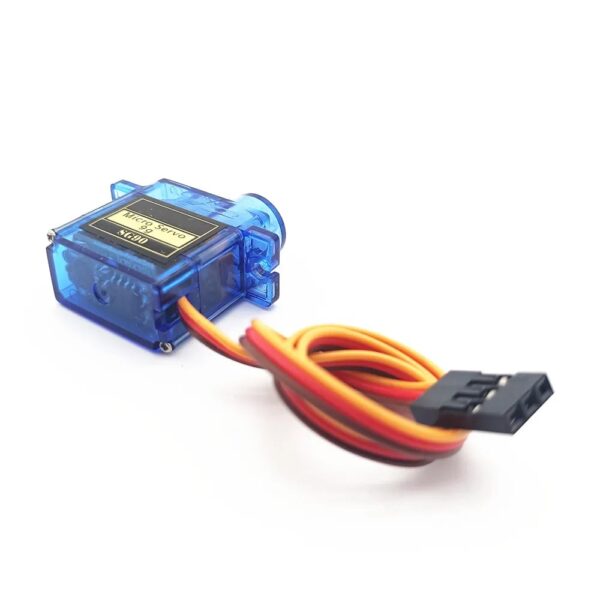

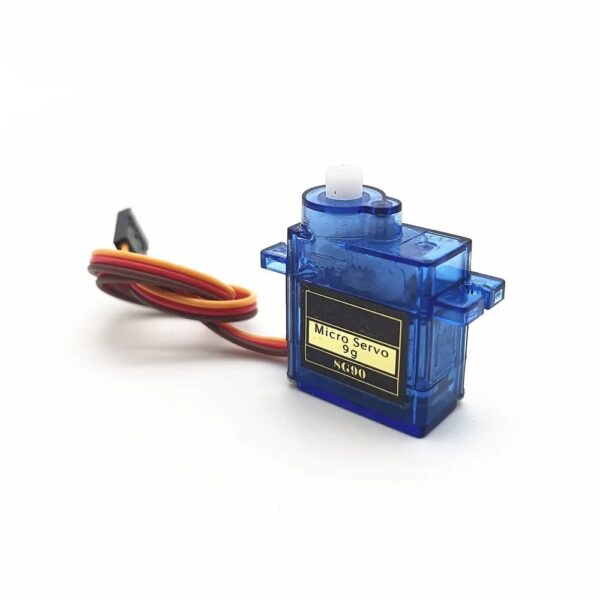

SG90 Micro Servo, 9 g, 180° (4-Pack)

$7.99

The classic 9 g plastic-gear micro servo, 180° rotation, 3-pin lead with a 2.54 mm plug. Pack of four with horns and screws. For heavier or back-driven loads, see the metal-gear MG90S.

Request a Quote
✓Returns: 30-day RMA for unused, sealed catalog hardware. Address is issued after approval. See Returns.
✓Warranty: 90-day limited warranty on paid Kymopsis-branded catalog hardware for manufacturing defects. Custom work follows the quote.
✓Ordering & shipping: Duties and import taxes included: we ship duties paid, so there is nothing extra to pay at delivery. Secure checkout through Stripe. Orders ship worldwide at USD 15, free from a USD 79 merchandise subtotal. Dispatch time is stated on each listing; the carrier is shown at checkout. Policies.
SKU: KYM-DT-SG90-4 Category:

A light, low-cost servo for small pan, tilt, and pointer mechanisms where the load is light.

Specifications

  • Rotation: about 180°
  • Stall torque: about 1.6 kg·cm at 4.8 V
  • Speed: about 0.1 s/60° at 4.8 V
  • Supply: 4.8–6 V
  • Control: PWM, 50 Hz, about 0.5–2.5 ms pulse
  • Lead: 3-wire: brown GND, red V+, orange signal; 2.54 mm female plug
  • Size and weight: about 22.8 × 12.2 × 28.5 mm, 9 g
  • Pack: 4 servos with horns and screws

Typical uses

  • Pointers, flaps, and small lift mechanisms
  • Pan and tilt for light sensors
  • Robotics lessons and RC models

Power servos from a separate 5 V supply rather than a microcontroller 3.3 V pin, and share ground with the controller. Upgrade: MG90S metal gear servo.

Ordering notes

  • Ships within 5 business days after payment.
  • Shipping: USD 15 per order worldwide, free from a USD 79 merchandise subtotal. See Shipping.
  • Need a larger quantity, a different version, or a custom carrier board? Request a quote.
