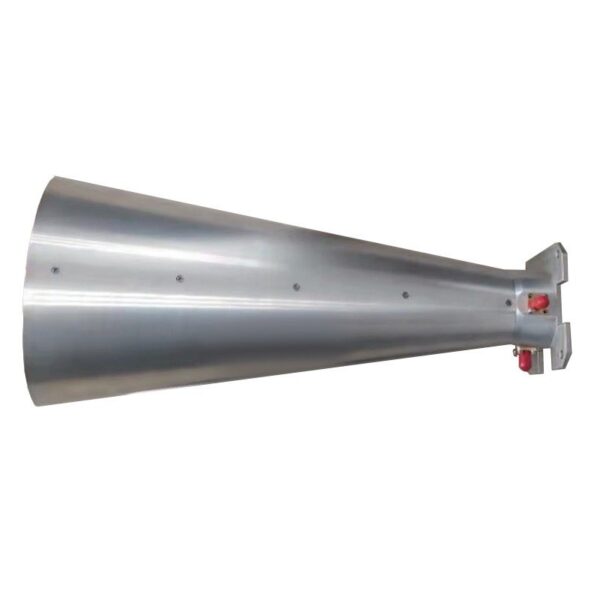

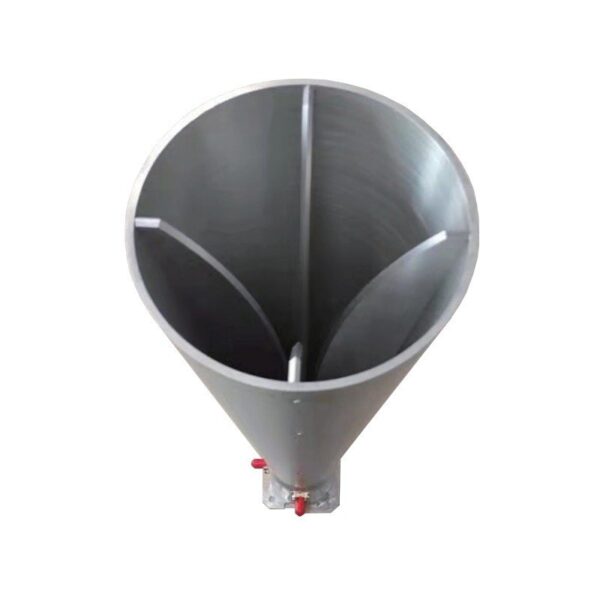

A broadband conical horn with an internal ridge structure that gives two orthogonal linear polarizations on separate SMA ports. Useful when you need H and V measurements without rotating the antenna.
Supplier datasheet figures
- Frequency: 6–18 GHz
- Gain: 12–18 dB across the band (supplier overview lists 2–21 dBi)
- VSWR: ≤ 2
- Polarization: dual linear (horizontal and vertical)
- Port isolation: ≥ 20 dB
- Ports: 2 × SMA female (SMA-50K)
- Aperture: ≤ 99 mm; maximum size 360 × 192 mm
- Weight: ≤ 0.6 kg
- Operating temperature: −40 °C to +70 °C
Typical uses
- Polarization diversity and cross-pol measurements
- Wideband EMC and spectrum monitoring
- C to Ku band radar and link testing
Ordering notes
- Ships within 15 business days after payment (made to order or held at the factory). We email you if that changes.
- Ships from China. Duties and import taxes are included: we ship duties paid (DDP), so there is nothing extra to pay at delivery.
- Figures above are supplier datasheet values, not a Kymopsis lab report. Ask us for the supplier test data where one exists.
- Need a different band, connector, gender, or length, or more than 10 pieces? Request a quote.
