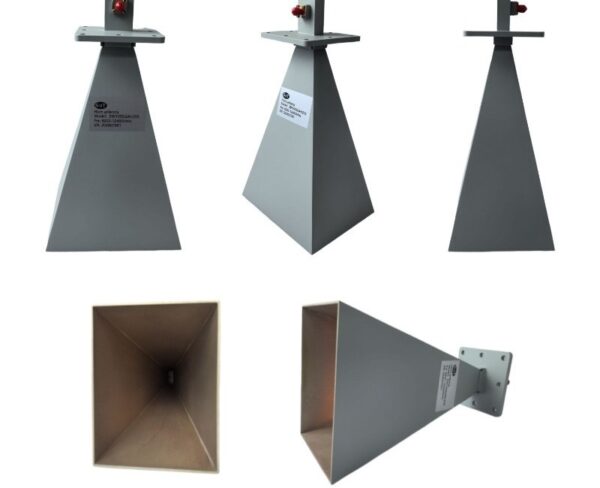

A pyramidal standard gain horn for the full X band, coax-fed through an N female port, in a conductive-oxidized aluminum body with a gray protective finish.
Supplier datasheet figures
- Frequency: 8.2–12.4 GHz (WR-90 band)
- Gain: 20 dB typical (supplier gain table: about 19.4 dB at 8.2 GHz rising to about 21.6 dB at 11.6 GHz)
- VSWR: ≤ 1.5
- Polarization: linear
- Port: N female (SMA female version by quote)
- Material: aluminum, conductive oxidation

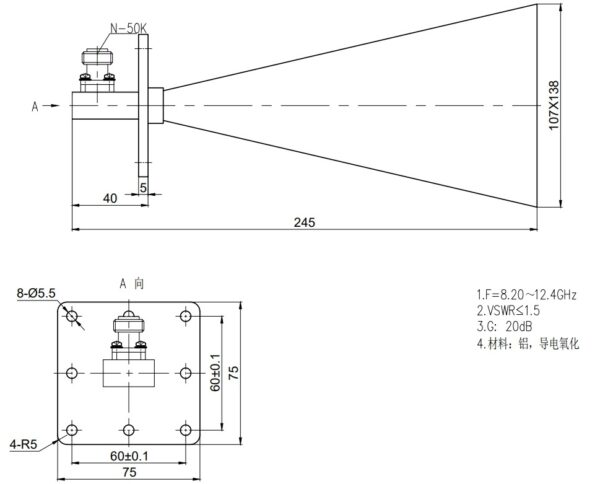

- Size from drawing: 245 mm long, 138 × 107 mm aperture, 75 × 75 mm mounting flange
Typical uses
- EMC radiated immunity and emission set-ups in X band
- Antenna gain and pattern reference
- X-band radar and RCS bench work
Ordering notes
- Ships within 15 business days after payment (made to order or held at the factory). We email you if that changes.
- Ships from China. Duties and import taxes are included: we ship duties paid (DDP), so there is nothing extra to pay at delivery.
- Figures above are supplier datasheet values, not a Kymopsis lab report. Ask us for the supplier test data where one exists.
- Need a different band, connector, gender, or length, or more than 10 pieces? Request a quote.
