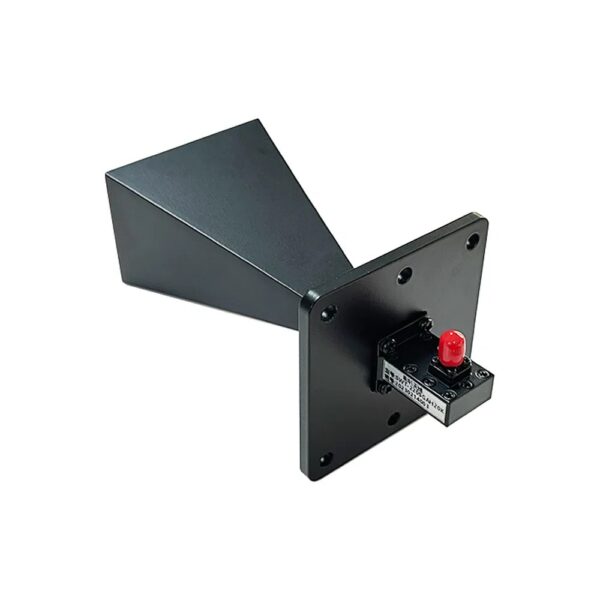

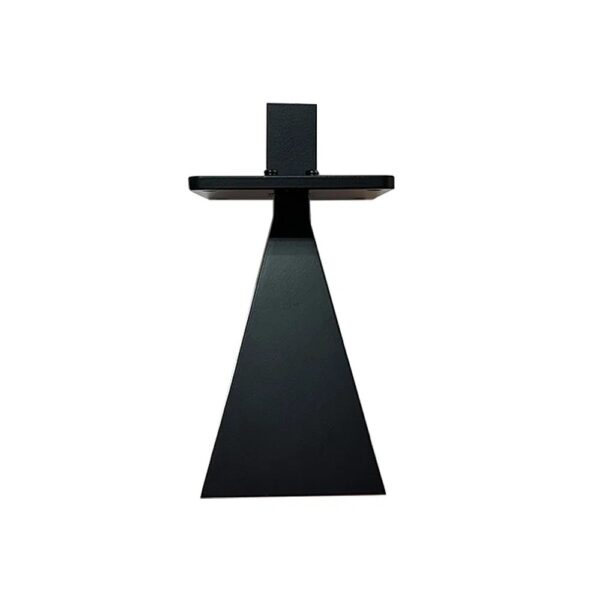

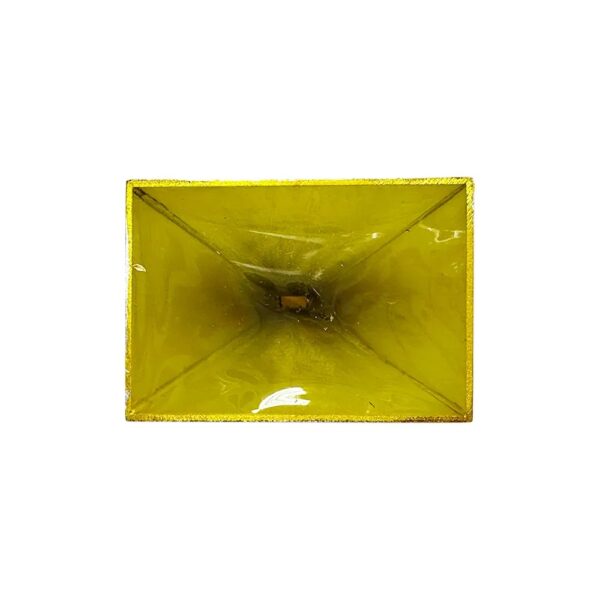

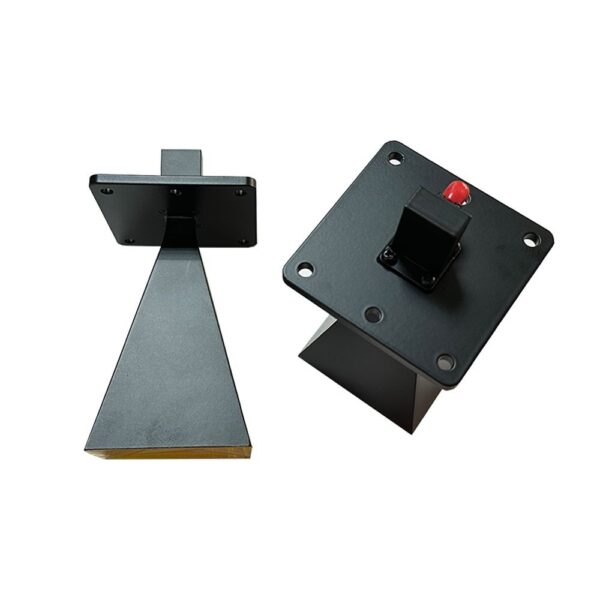

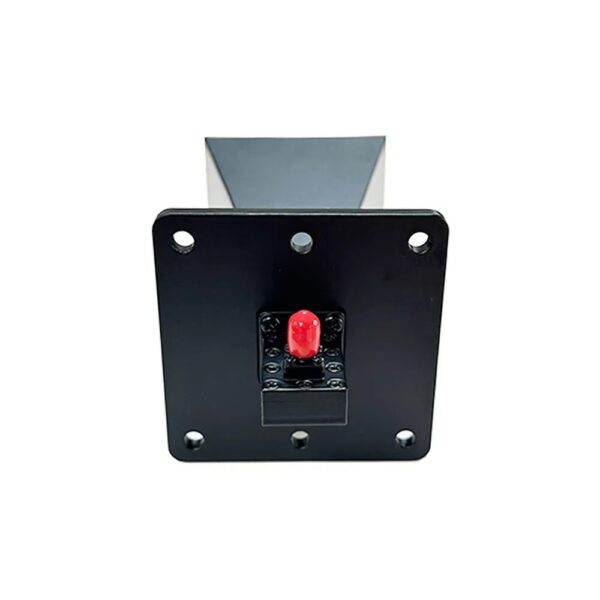

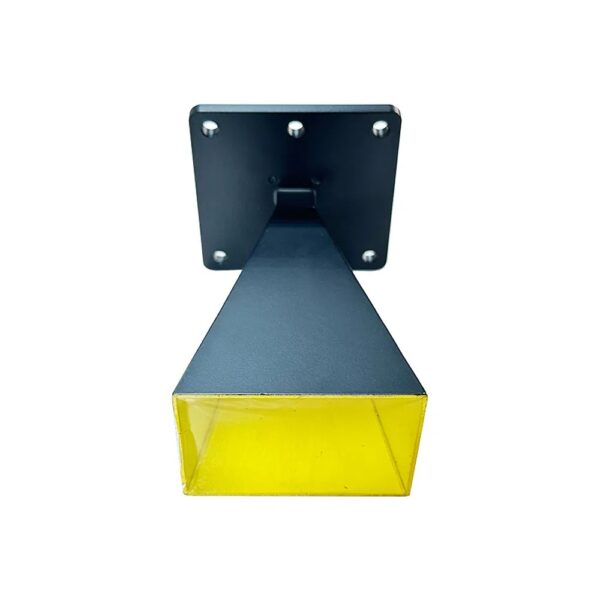

K-Band Standard Gain Horn Antenna, 17.6–26.7 GHz, 20 dB, 2.92 mm (F)

$505.00

Standard gain horn for 17.6–26.7 GHz (WR-42 band) with 20 dB nominal gain and a 2.92 mm female coaxial port. For K-band antenna measurement, radar and link test benches.

Request a Quote
✓Returns: 30-day RMA for unused, sealed catalog hardware. Address is issued after approval. See Returns.
✓Warranty: 90-day limited warranty on paid Kymopsis-branded catalog hardware for manufacturing defects. Custom work follows the quote.
✓Ordering & shipping: Duties and import taxes included: we ship duties paid, so there is nothing extra to pay at delivery. Secure checkout through Stripe. Orders ship worldwide at USD 15, free from a USD 79 merchandise subtotal. Dispatch time is stated on each listing; the carrier is shown at checkout. Policies.
SKU: KYM-HRN-K20-292 Category:

A pyramidal standard gain horn covering 17.6–26.7 GHz with a coax-fed 2.92 mm (K) female port, so it connects straight to a 40 GHz cable or VNA test port without a separate waveguide adapter.

Supplier datasheet figures

  • Frequency: 17.6–26.7 GHz (WR-42 band)
  • Gain: 20 dB (standard)
  • VSWR: ≤ 1.5
  • 3 dB beamwidth: E-plane 11°–19°, H-plane 12°–18°
  • Port: 2.92 mm (K) female
  • Material: copper
  • Size: 70 × 49 × 155 mm

Typical uses

  • Gain-transfer reference for antenna measurements
  • 24 GHz radar module bench tests (target or illuminator horn)
  • Short-range K-band link and propagation tests

Ordering notes

  • Ships within 15 business days after payment (made to order or held at the factory). We email you if that changes.
  • Ships from China. Duties and import taxes are included: we ship duties paid (DDP), so there is nothing extra to pay at delivery.
  • Figures above are supplier datasheet values, not a Kymopsis lab report. Ask us for the supplier test data where one exists.
  • Need a different band, connector, gender, or length, or more than 10 pieces? Request a quote.
